Home > Products > Spectrograph & Monochromator > Light Source > LED Light Source

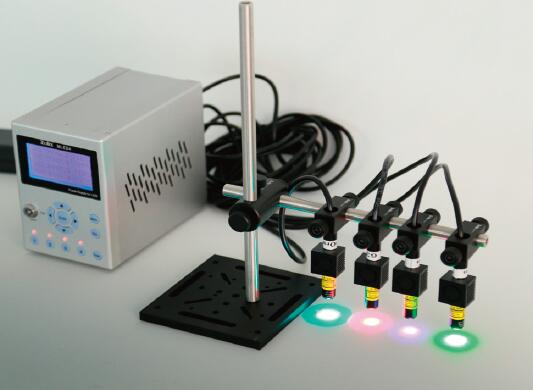

LED Light Source

Inquiry

Download

Details&Spec

Details

Application

Photocatalysis, ultraviolet analyzer biological genetic engineering, molecular genetics, medical and health, biological products, pharmaceutical research, health and epidemic prevention, dye chemical industry, petroleum chemical industry, textile industry, etc.

Feature:

■ Efficient electro-optic conversion efficiency, energy conservation and environmental protection

■ Small volume, convenient to carry, convenient for system integration

■ Digital switch control, remote communication control,1-100% light intensity adjustment

■ Set work plan for exposure time and light intensity.

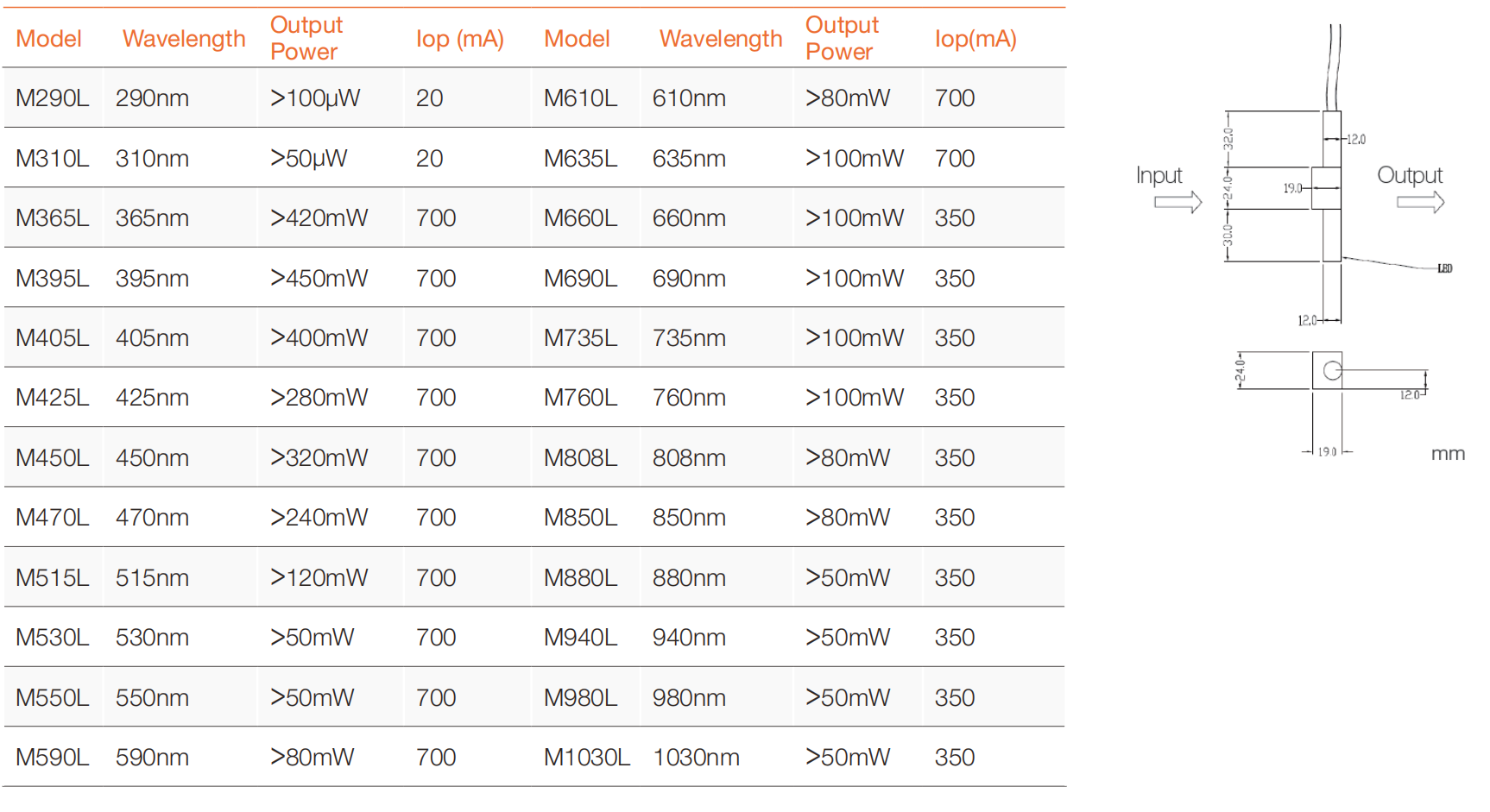

LED order information

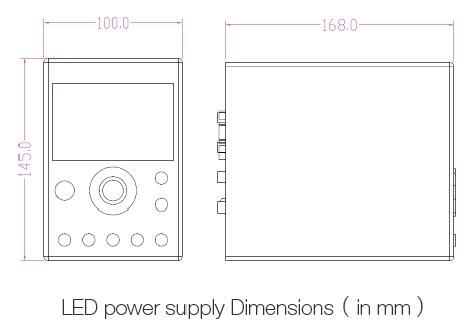

LED Power Supply Order Information

Model	MLED4-1	MLED4-2	MLED4-3	MLED4-4	MLED4-5
CH1(output current mA)	700	20	20	20	20
CH2(output current mA)	700	700	700	700	20
CH3(output current mA)	700	700	700	350	350
CH4(output current mA)	700	700	350	350	350
Radiation mode	Fixed irradiation: irradiation power (0-100%) adjusted (adjusting the duty ratio), modulation switch frequency 120 Hz, the irradiation time can be set maximum 9999.9 s, long time exposure can be realized by manual control.
Control mode	Manual control, Digital signal control(turn on, turn off), RS232 control (turn on, turn off)
Cooling	Fan
Power supply	Input AC 110V~220V, output DC12~4A
Environmental temperature	Working temperature: +5~+35℃,storage temperature: -10~+55℃
Environmental humidity	Working/Storage: RH 20~80%
Weight	1.5kg

LED holder order information

Model	MLED-POST1	MLED-POST2	MLED-POST3	MLED-POST4
LED number	1	2	3	4

LED holder can fix the LED conveniently, and the height( up to 200 mm), direction are adjustable. The MLED-POST1, MLED-POST2, MLED-POST3, MLED-POST4, It can fix one to four LED at the same time respectively
