消色差透鏡一般由兩種不同折射率的透鏡組成，通過該透鏡光線的球差、慧差和色差等近軸像差都能得到較好的校正，一般分為正膠合, 負膠合透鏡及雙分離透鏡，大多數都需要定制。歡迎來電垂詢。

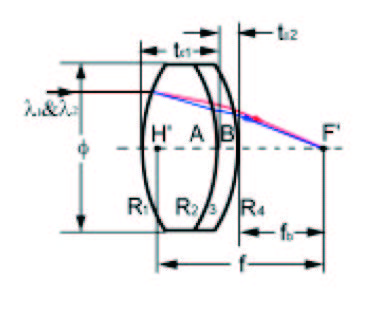

正膠合消色差透鏡(Positive Achromatic Lens)
命名規則:OLPA直徑-焦距
| OLPA系列,正膠合消色差透鏡 | ||||||
| 型號 | 名稱 | 直徑ømm) | 焦距f (mm) | 厚度1 TC1(mm) | 厚度2 TC2(mm) | 背焦fb(mm) |
| OLPA25.4-050 | 正膠合消色差透鏡 | 25.4 | 50 | 7.8 | 2 | 44.5 |
| OLPA25.4-100 | 正膠合消色差透鏡 | 25.4 | 100 | 4.5 | 2 | 97 |

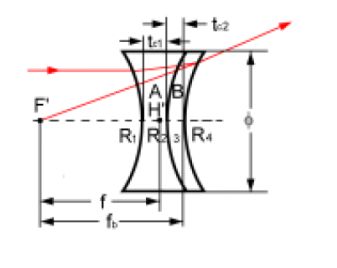

| OLNA系列,負膠合消色差透鏡 | ||||||
| 型號 | 名稱 | 直徑ømm) | 焦距f (mm) | 厚度1 TC1(mm) | 厚度2 TC2(mm) | 背焦fb(mm) |
| OLNA25.4-050 | 負膠合消色差透鏡 | 25.4 | -50 | 3 | 4.2 | -53.3 |
ZAC系列消色差雙膠合透鏡
消色差雙膠合透鏡采用冕牌玻璃與火石玻璃精密膠合設計，通過材料色散互補有效校正軸向色差與球差，在工作波段內提供近乎恒定的焦距。產品針對不同增透膜系精準匹配三組核心波長：VIS膜系（400-700nm）選用486.1nm、587.6nm、656.3nm；NIR膜系（700-1100nm）選用706.5nm、855nm、1015nm；SWIR膜系（1100-1650nm）選用1016nm、1330nm、1550nm；寬帶膜系（400-1100nm）選用488nm、707nm、1064nm。多波長協同計算確保焦距偏移量小于0.5mm，全波段性能穩定，單面平均反射率小于0.5%，顯著提升成像質量與光束控制精度。
1）消色差雙膠合透鏡，增透膜400 nm-700 nm
| 型號 | ZAC064-015-A | ZAC080-010-A | ZAC080-030-A | ZAC127-019-A | ZAC127-025-A | ZAC127-030-A | ZAC127-050-A | ZAC127-075-A | ZAC254-030-A |
| 工作波長 | 400 nm - 700 nm | 400 nm - 700 nm | 400 nm - 700 nm | 400 nm - 700 nm | 400 nm - 700 nm | 400 nm - 700 nm | 400 nm - 700 nm | 400 nm - 700 nm | 400 nm - 700 nm |
| 光學元件材質 | N-BK7/SF2 | N-BAF10/N-SF6HT | N-BK7/N-SF2 | N-BAF10/N-SF6HT | N-BAF10/N-SF10 | N-BK7/SF2 | N-BK7/SF2 | N-BK7/SF2 | N-BAF10/N-SF6HT |
| 直徑 | 6.35 mm | 8.0 mm | 8.0 mm | 12.7 mm | 12.7 mm | 12.7 mm | 12.7 mm | 12.7 mm | 25.4 mm |
| 直徑公差 | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm |
| 通光孔徑 | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA |
| 中心厚度 | 4.0 mm | 6.5 mm | 4.0 mm | 6.0 mm | 7.0 mm | 5.0 mm | 5.0 mm | 4.0 mm | 14.0 mm |
| 中心厚度公差 | ±0.1 mm | ±0.1 mm | ±0.2 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| 邊緣厚度 | 3.2 mm | 4.9 mm | 3.4 mm | 4.0 mm | 5.6 mm | 3.4 mm | 4.0 mm | 3.4 mm | 8.8 mm |
| 曲率半徑 1 | 8.8 mm | 7.1 mm | 16.0 mm | 12.9 mm | 12.9 mm | 17.9 mm | 27.4 mm | 41.3 mm | 20.9 mm |
| 曲率半徑 2 | -6.6 mm | -5.3 mm | -13.5 mm | -11.0 mm | -10.6 mm | -13.5 mm | -22.5 mm | -34.0 mm | -16.7 mm |
| 曲率半徑 3 | -21.7 mm | -22.7 mm | -59.4 mm | -59.3 mm | -59.3 mm | -44.2 mm | -91.8 mm | -137.1 mm | -79.8 mm |
| 設計波長 | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm |
| 焦距 | 15.0 mm | 10.0 mm | 30.0 mm | 19.0 mm | 25.0 mm | 30.0 mm | 50.0 mm | 75.0 mm | 30.0 mm |
| 焦距公差 | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| 背焦距 | 13.0 mm | 6.7 mm | 27.8 mm | 15.7 mm | 21.5 mm | 27.5 mm | 47.2 mm | 72.9 mm | 22.2 mm |
| 鍍膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 |
| 增透膜規格 | Ravg < 0.5% @工作波長 | Ravg < 0.5% @工作波長 | Ravg < 0.5% @工作波長 | Ravg < 0.5% @工作波長 | Ravg < 0.5% @工作波長 | Ravg < 0.5% @工作波長 | Ravg < 0.5% @工作波長 | Ravg < 0.5% @工作波長 | Ravg < 0.5% @工作波長 |
| (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | |
| 表面光潔度 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 |
| 曲面局部光圈 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| 曲面光圈 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 偏心度 | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin |
| 損傷閾值 | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm² @515nm, 290fs, 100Hz |
| 型號 | ZAC254-035-A | ZAC254-040-A | ZAC254-045-A | ZAC254-050-A | ZAC254-060-A | ZAC254-100-A | ZAC254-125-A | ZAC254-150-A | ZAC254-200-A |
| 工作波長 | 400 nm - 700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm |
| 光學元件材質 | N-BAF10/N-SF6HT | N-BK7/SF5 | N-BAF10/N-SF6HT | N-BAF10/N-SF10 | E-BAF11/FD10 | N-BK7/SF5 | N-BK7/N-SF5 | N-BK7/SF5 | N-SSK5/LAFN7 |
| 直徑 | 25.4 mm | 25.4 mm | 25.4 mm | 25.4 mm | 25.4 mm | 25.4 mm | 25.4 mm | 25.4 mm | 25.4 mm |
| 直徑公差 | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm |
| 通光孔徑 | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA |
| 中心厚度 | 14.0 mm | 12.5 mm | 9.0 mm | 11.5 mm | 10.5 mm | 6.5 mm | 6.8 mm | 7.9 mm | 6.5 mm |
| 中心厚度公差 | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.2 mm |
| 邊緣厚度 | 9.6 mm | 7.50 mm | 5.7 mm | 8.7 mm | 8.2 mm | 4.7 mm | 5.0 mm | 6.6 mm | 5.7 mm |
| 曲率半徑 1 | 24.0 mm | 23.66 mm | 31.2 mm | 33.3 mm | 41.7 mm | 62.8 mm | 77.6 mm | 91.6 mm | 77.4 mm |
| 曲率半徑 2 | -19.1 mm | 20.09 mm | -25.9 mm | -22.3 mm | -25.9 mm | -45.7 mm | -55.9 mm | -66.7 mm | -87.6 mm |
| 曲率半徑 3 | -102.1 mm | 57.68 mm | -130.6 mm | -291.1 mm | -230.7 mm | -128.2 mm | -160.8 mm | -197.7 mm | 291.1 mm |
| 設計波長 | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm |
| 焦距 | 35.0 mm | 40.0 mm | 45.0 mm | 50.0 mm | 60.0 mm | 100.0 mm | 125.0 mm | 150.0 mm | 200.0 mm |
| 焦距公差 | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| 背焦距 | 27.3 mm | 33.4 mm | 40.2 mm | 43.4 mm | 54.3 mm | 97.1 mm | 122.0 mm | 146.1 mm | 194.0 mm |
| 鍍膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 |
| 增透膜規格 | Ravg < 0.5% @工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 |
| (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | |
| 表面光潔度 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 |
| 曲面局部光圈 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| 曲面光圈 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 偏心度 | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin |
| 損傷閾值 | 0.14 J/cm² @515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz |
| 型號 | ZAC300-080-A | ZAC300-100-A | ZAC508-075-A | ZAC508-080-A | ZAC508-100-A | ZAC508-150-A | ZAC508-180-A | ZAC508-500-A |
| 工作波長 | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm | 400 nm-700 nm |
| 光學元件材質 | N-BAF10/N-SF6HT | N-BAF10/N-SF6HT | E-BAF11/N-SF11 | N-BAF10/N-SF6HT | N-BAF10/N-SF10 | N-BK7/SF5 | N-BK7/N-SF5 | N-BK7/N-SF2 |
| 直徑 | 30.0 mm | 30.0 mm | 50.8 mm | 50.8 mm | 50.8 mm | 50.8 mm | 50.8 mm | 50.8 mm |
| 直徑公差 | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm | +0.00/-0.10 mm |
| 通光孔徑 | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA | >90% CA |
| 中心厚度 | 10.5 mm | 7.0 mm | 23.0 mm | 18.0 mm | 20.0 mm | 15.0 mm | 14.0 mm | 12.0 mm |
| 中心厚度公差 | ±0.2 mm | ±0.2 mm | ±0.2 mm | ±0.2 mm | ±0.2 mm | ±0.1 mm | ±0.2 mm | ±0.2 mm |
| 邊緣厚度 | 7.9 mm | 5.0 mm | 14.9 mm | 10.5 mm | 14.4 mm | 9.7 mm | 9.4 mm | 10.5 mm |
| 曲率半徑 1 | 56.0 mm | 70.0 mm | 50.8 mm | 54.9 mm | 71.1 mm | 83.2 mm | 109.7 mm | 382.5 mm |
| 曲率半徑 2 | -44.2 mm | -57.0 mm | -41.7 mm | -46.4 mm | -44.2 mm | -72.1 mm | -80.7 mm | -182.1 mm |
| 曲率半徑 3 | -219.8 mm | -284.4 mm | -247.7 mm | -247.2 mm | -363.1 mm | -247.7 mm | -238.5 mm | - |
| 設計波長 | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm | 486.1 nm, 587.6 nm, 656.3 nm |
| 焦距 | 80.0 mm | 100.0 mm | 75.0 mm | 80.0 mm | 100.0 mm | 150.0 mm | 180.0 mm | 500.0 mm |
| 焦距公差 | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| 背焦距 | 74.3 mm | 96.4 mm | 61.8 mm | 69.9 mm | 89.0 mm | 140.4 mm | 172.7 mm | 496.3 mm |
| 鍍膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 | 增透膜 |
| 增透膜規格 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 | Ravg <0.5%@工作波長 |
| (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | (6°入射角，單面) | |
| 表面光潔度 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 | 40/20 |
| 曲面局部光圈 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| 曲面光圈 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 偏心度 | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin | ≤3 arcmin |
| 損傷閾值 | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz | 0.14 J/cm²@515nm, 290fs, 100Hz |
| 型號 | PDF圖紙 |
|---|---|
| 消色差雙膠合透鏡，增透膜400 nm-700 nm | |
| ZAC064-015-A |  |
| ZAC080-010-A | |
| ZAC080-030-A | |
| ZAC127-019-A | |
| ZAC127-025-A | |
| ZAC127-030-A | |
| ZAC127-050-A | |
| ZAC127-075-A | |
| ZAC254-030-A | |
| ZAC254-035-A | |
| ZAC254-040-A | |
| ZAC254-045-A | |
| ZAC254-050-A | |
| ZAC254-060-A | |
| ZAC254-100-A | |
| ZAC254-125-A | |
| ZAC254-150-A | |
| ZAC254-200-A | |
| ZAC300-080-A | |
| ZAC300-100-A | |
| ZAC508-075-A | |
| ZAC508-080-A | |
| ZAC508-100-A | |
| ZAC508-150-A | |
| ZAC508-180-A | |
| ZAC508-500-A | |
